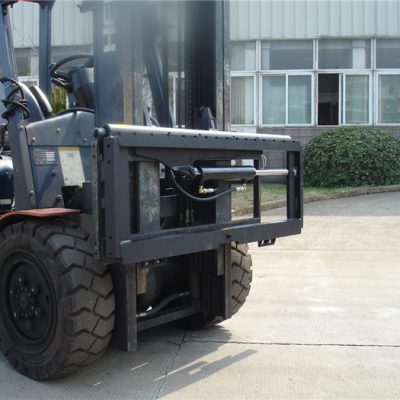

Chiny Dostawcy Wysokiej jakości wózek boczny przesuwny

funkcje

---

Integrate Cylinder and Side shifter frame into a component, saving room and widening the view.

Easy installed, directly connected to fork carriage.

Double-headed rod cylinder, keep the same thrust force and speed on both sides of cylinder.

The lower bearings used wear-resistant nylon-material to ensure smoothly move.

Highly efficiency, easy maintenance and operation.

Specyfikacja

---

Capacity@Load Center (Kg@600)	Catalogue Order  Nie.	Montowanie Klasa	Minmum Turck Carriage Width (mm)	Szerokość wózka W (mm)	Pionowy środek ciężkości VCG (mm)	Waga (Kg)	Efektywna grubość ET (mm)	Poziomy środek ciężkości HCG (mm)
4500@600	HSS45D-C001-1000	III	895	1000	390	140	64	33
4500@600	HSS 45D-C001-1100		965	1100	390	150	64	33
4500@600	HSS 45D-C001-1200		1016	1200	390	160	64	33
4500@600	HSS 45D-C001-1250		1170	1250	390	200	64	33
4500@600	HSS 45D-C001-1330		1210	1330	390	210	64	33
6800@600	HSS 68D-D001-1330	IV	1220	1330	440	240	84	43
6800@600	HSS 68D-D001-1532		1220	1532	440	140	77	43
6800@600	HSS 68D-D001-1670		1372	1670	440	300	84	43
6800@600	HSS 68D-D001-1700		1525	1700	440	300	84	43
6800@600	HSS 68D-D001-1844		1525	1744	440	330	84	43
6800@600	HSS 68D-D001-2400		2085	2400	440	388	84	43

Uwaga

---

Uzyskaj rzeczywistą pojemność wózka widłowego i osprzętu od producenta wózka widłowego,
One/Two sets additional oil circuit required on forklift
Sideshift range total :45D,200(+/-100)mm;68D,300(+/-150)mm
Can be customized according to customer requirements of various width.
Please contact the sales from LANDHONG.

Podanie

---

Side shifter is the most common attachment installed in forklift, allowing side shifting of 100mm both leftward and rightward for the goods on the forklift fork, which is convenient to pick up and stack the goods, thus greatly improves the flexibility and moving efficiency of the forklift. It is suitable for various occasions using forklift for moving and stacking.

Szybkie Szczegóły

---

Miejsce pochodzenia: Fujian, Chiny (kontynent)
Nazwa marki: HUAMAI
Model Number: HSS45D-C001-1000
Product Name: Forklift side shift attachment
Type: HSS45D-C001-1000
Klasa montażu: III
Minmum Turck Carriage Width (mm): 895mm
Carriage Width W(mm): 1000mm
Vertical Center of Gravity VCG (mm): 390mm
Overall Height (mm): 2350mm
Effective Thickness (mm): 64mm
Weight (kg): 140mm
Horizontal Center of Gravity HCG (mm): 33mm

---



Przesuw boczny klasy 4
